WALK-1 TREADMILL DESK Specs



The TREADMILL


WALK-1 TREADMILL


Features

  • 50% wider than regular treadmills providing more usable walking arer so you can meander comfortably across the entire width of your desk.
  • Over a foot shorter than regular treadmills saves precious floor space behind your desk.
  • Auto-Stop insures safety. The walking surface stops immediately when you step off and resumes with the simple push of the control knob.
  • Low step up height of 5”.
  • Library quiet and smooth at slow speeds.
  • Intuitive and attractive desktop controller includes USB charger and takes up minimal space.
  • U.S. Patent No. D797216 walking platform design enhances safety, productivity and creativity.
  • Mobile App tracks meaningful metrics including steps, distance, calories, walking time and total standing time and connects that data to FitBit and Apple’s Health App and allows you to share your progress on your favorite Social Media.
  • TUV Product Safety Certification, exceeds UL and ETL.

TUV Certified

Details

Specs

DIMENSIONS OVERALL – 39” wide by 56” long
WALKING SURFACE - 30” wide by 40” long
STEP UP HEIGHT 5"
WEIGHT 162 lbs. – (73 kg.)
SPEED RANGE 0.3 – 2.0 MPH (.05 - 3.2KPH)
MAXIMUM LOAD 400 lbs. – (181 kg.)
ELECTRICAL 120VAC – 60Hz – 6amp – 600 watt
ELECTRICAL OUTLET REQUIRED 120VAC – 20 amp, dedicated circuit recommended
MOTOR HORSEPOWER 2.75 at 4,000 RPM TREADMILL DUTY
AMPERAGE DRAW 1.5 at 2 MPH w/170 lb person
NOISE LEVEL 42.9dB - ear level at 2mph
DATA DISPLAY VIA BLUETOOTH TO iOS and Android APP
DATA SENT TO APP Speed, Time, Distance, Calories, Steps, Time spent standing
SHIPPING DIMENSIONS 62" x 42" x 10" - 182 lbs - (82 kg)

Warranty

FRAME – Lifetime
All other parts – 3 years
Labor to replace parts – 1 year



More info about the UnSit warranty

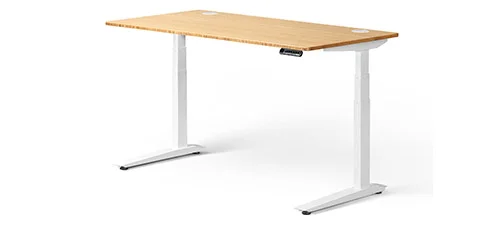

The Desk


WALK-1 DESK


Features

  • Electronically controlled Height Adjustment from 29 inches up to 48 inches.
  • Four pre-set memory settings
  • Sturdy triangulated commercial strength frame.
  • Floor Levelers on all four contact points.
  • Downward facing telescoping leg mechanism.
  • Two synchronized motors easily accessible for service or replacement.
  • Commercial thickness wood veneered laminated desktop.
  • Made with UL/ETL Certified components
  • Quality certified by BIFMA/ANSI



Specs

DESKTOP 57.75” x 28” x 1.125” – Commercial wood veneer laminate
HEIGHT Adjusts from 29 inches up to 48 inches
LIFTING CAPACITY 530 lbs - (240 kgs)
DIMENSIONS 28” deep x 60” wide x 27” up to 47” tall
LIFTING CAPACITY 530 lbs - (240 kg)
ELEVATION SPEED 1.5 inches/second (38mm/second)
ELECTRICAL REQUIREMENTS 120VAC - 15 amps
FRAME WIDTH Can be adjusted from 33” out to 54”
FRAME WEIGHT 64lbs – (29kg)
DESKTOP SURFACE WEIGHT 45lbs – (20kg)
COMBINED WEIGHT 109 lbs – (49kg)

Assembly

Assembly takes about 45 minutes and requires bolting the two legs to the main frame and tightening 20 Allen bolts. Assembly may require two people to lift and maneuver. One Allen key wrench is included. The desktop surface must then be screwed to the frame. Holes have been pre-drilled but you need a good Phillips head screw driver, and/or a motorized drill/screwdriver. The controller needs to be screwed under the desk’s surface and wire’s tied up for neatness.


FEATURE UNSIT LIFESPAN
TR5000-DT3
iMOVR REBEL STEELCASE
USABLE WALKING SURFACE - Area you can actually walk on. 1200 sq.inches 800 sq.inches 800 sq.inches 720 sq.inches. 774 sq.inches
PROTRUDES BEHIND YOUR DESK 27 inches 37 inches 40 inches 36 inches 40 inches
OVERALL WIDTH - Allows safe access to the entire width of your desk. 38 inches 28 inches 29 inches 24 inches 31 inches
IMMEDIATE AUTO STOP AT ALL SPEEDS YES NO NO NO NO
CONTROLLER FOOTPRINT - Space taken up on your desktop. 5" x 5" = 25 sq.inches 13" x 3" = 39 sq.inches 7.25" X 4.125" = 30 sq.inches 8" X 3" = 24 sq. inches Built in to front edge of desk
CONTROLLER TYPE Single Tactile Turn Knob Multiple Press Buttons Multiple Press Buttons Multiple Press Buttons Multiple Press Buttons
EMERGENCY STOP MECHANISM Mounts discreetly under desk Connects to controller, tether sits on top of desk. Less likely to activate when needed. Connects to controller, tether sits on top of desk. Less likely to activate when needed. Connects to controller, tether sits on top of desk. Less likely to activate when needed. Plugs in to front edge of desk.
DECIBEL LEVEL¹ 42.9 dB Not Published 42.7 dB Not Published Not Published
SHOCK ABSORBING DECK YES YES YES NO YES
SPEED RANGE .3 - 2.0 mph .4 - 4 mph (can be set at 2mph) .5 - 2.5 mph .5 - 2.5 mph .3 - 2.0 mph
SAFETY CERTIFICATION TUV² CE UL None Listed "Meets ETL requirements"
SMART PHONE APP YES YES cloud service NO NO
WARRANTY Lifetime Frame
3 Years Motor
2 Years Parts
1 Year Labor
Lifetime Frame
3 Years Motor
2 Years Parts
1 Year Labor
3 years Motor
2 years Parts
1 year Labor
20 years Frame
2 years Motor
1 Year Labor
3 years Motor
2 years Parts
1 year Labor
RETURN POLICY 30 day 100% refund minus shipping 30 days 85% refund minus shipping 100 day 80% refund minus shipping 30 day 100% refund no freight charges Check with local Dealer
SERVICE PROVIDERS NGS³ Not Published Spirit Not Published Steel Case Dealers
MAXIMUM USER WEIGHT 400 lbs 400 lbs 400 lbs 250 lbs 350 lb
AMPERAGE DRAW - 170lb person at 2 mph⁴ 1.5 amp 1.8 amps Not Published Not Published 3 - 8 amps
OVERALL FOOTPRINT 56" x 39" x 9" 63" x 28.5" x 7.5" 67.5" x 28.35" x 9.5" 63" x 24" x 6" 64" x 24" x 6"
TREADMILL WEIGHT 161 lbs 122 lbs 150 lbs 88 lbs Not Published
BELT DIMENSIONS 30" x 40" 20" x 50" 20" x 50" 18" x 50" 18" x 53"
STEP UP HEIGHT 5" 5.2" 5" Not Published 6"
PRICE WITH DESK 2,490 2249 2195 Not Available $4,995
PRICE WITH OUT DESK $1,695 $1,499 $1,495 $999 Not Available
SHIPPING FREE Depends on retailer $149 $195 Depends on retailer
MOTOR HORSEPOWER⁵ 2.75 HP 4,000 RPM Treadmill Duty 3 HP Continuous Duty 3 HP at 4000rpm - Unlimited Duty Cycle 1.5 HP - 3.5 peak
DC Continuous Drive Motor
Not Published


¹ Decibel Levels vary greatly depending on the acoustics of the room they are measured.

² TUV meets and exceeds ETL and UL safety standards.

³ National Gym Supply is an international provider of services and parts since 1992. NGS has a nationwide network of certified treadmill technicians.

⁴ The WALK-1 is uniquely geared to produce maximum power at slow speeds delivering a smooth quiet walking experience and the lowest amperage draw under load indicating its high degree of efficiency.

⁵ Horsepower is a rating that depends on multiple variables. The actual amount of power delivered to the walking belt depends on gearing.

manual icon Download the WALK-1 TREADMILL DESK owner's manual
